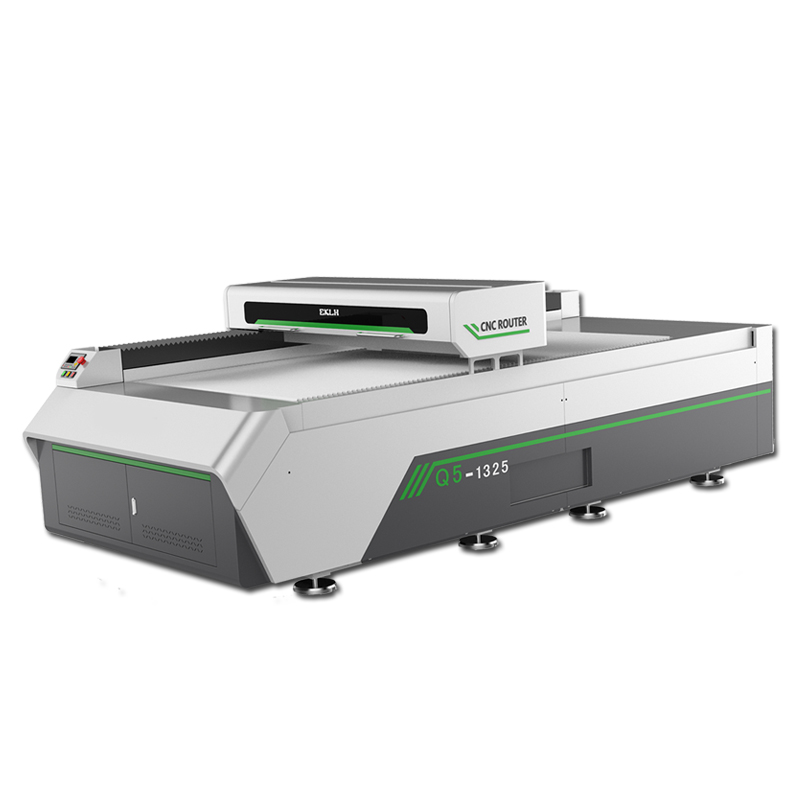

The introduction of laser engraving cutting machine Q5-1325 2019-04-22

Features:


◇Heavy bed structure cast aluminum gantry structure

◇Precision screw drive servo motor system
laser engraving cutting machine
◇CCD visual positioning patrol cutting

◇Top laser accessories

◇ humanized design

◇Modular standard


Applicable industry:

Model, advertising, decoration, craft gift,electronic appliances, signage, crystal jewelry, paper-cutting process, bamboo carpentry, packaging and printing, clothing, leather, thornrust, photo frame production and so on.


Applicable material:

Acrylic, wood, MDF, cloth, flocking cloth, non-wovenfabric, leather, paper products, wool, paperboard, film, plastic rubber, two-color board, bamboo products, marble, jade, crystal, glass, tile, plant fruits and other non-golden materials.


Technical parameter:

  Equipment model:Q5-1325

  Laser type:sealed off CO2 laser

  Laser
power:100W/130W/150W/180W


  Processing format:1250*2400mm

  Maximum running speed:60m/min

X/Y positioning accuracy:0.02mm

  Repeat positioning accuracy:0.02mm

  Working voltage:220V/50HZ

  Working environment:Temperature:0~45℃ Humidity:5~95%

  Cooling method:Industrial constant temperature water cooling system

  Equipment structure:Heavy industrial welding bed+cast aluminum gantry+screw      drive+servo motor

  Support file format:Ai/Plt/Dxf/Bmp/Jpg

  Machine power:≤2000w

  Machine size:2900*2000*1300mm
