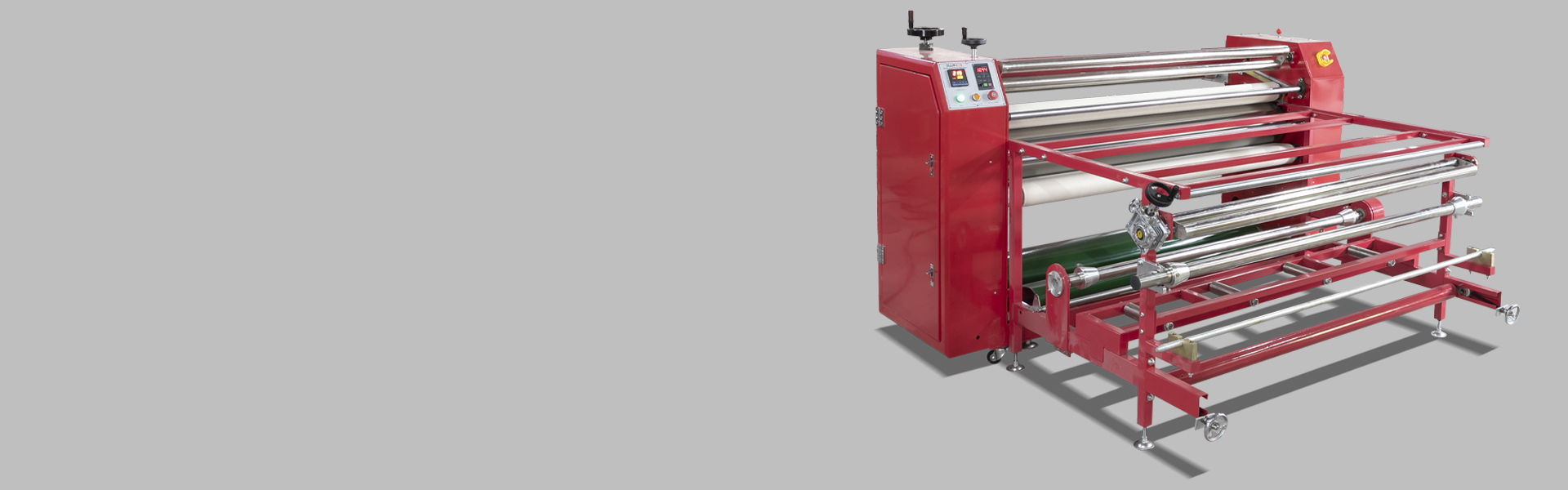

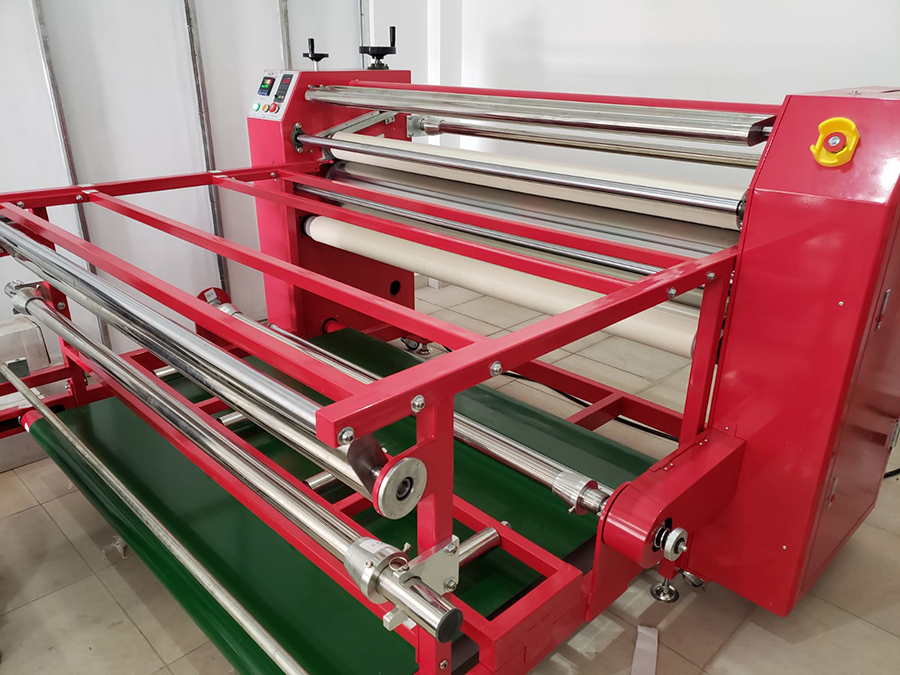

Calender Machine GT 210

Electronic digital thermostat control
No need for prolonged cooling

High temperature resistant material blanket

inquiry now
Home /

Sublimation Printer

/Calender Machine GT 210

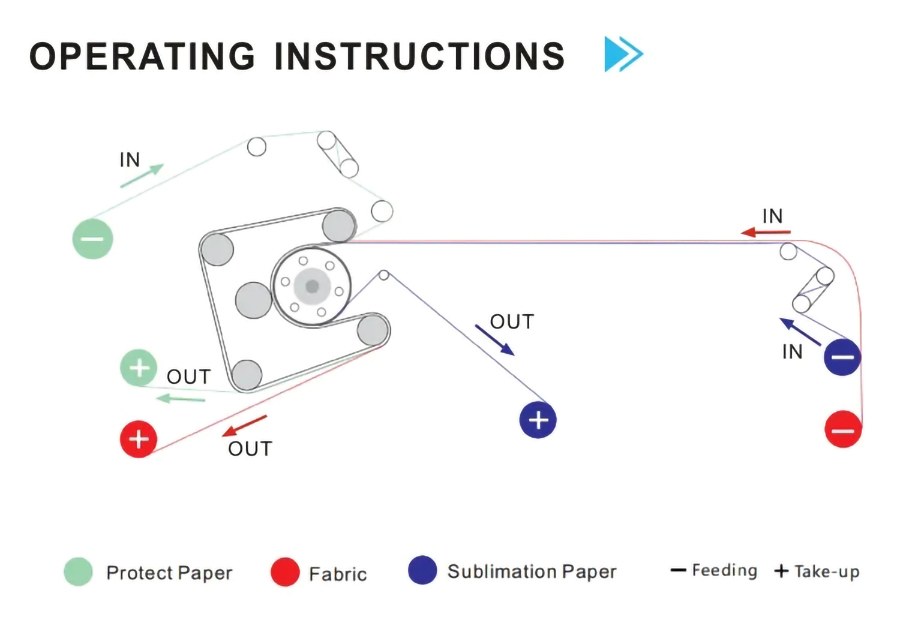

Calender Machine consists of some rollers, which drag the fabric and make it pass through two hot oil tubes, passing the fabric and paper together between these tubes, the sublimation process happens.



Model

GT 210

Printing/Roll Width

1700MM/67Inch

Roller diameter

210MM /8.27Inch

Voltage

220/380/420 Three-phase

Speed

0-6M/Min

Feeding Method

Top feeding

Air Compressor Required

Required

Temperature Range

0-399

Drum

Oil 100%

Drum Surface

Chrome:High hardness and abrasion performance

Blanket Material

Nomex:High Temperature Resistance

Rated output

11KW

Weight

1020KG

Packing Size

2480*1000*1650MM



Specification for textile calendering machine

kuster calender roll machine instruction


three roll calender machine


steam calendering machine


calender machine manufacturers

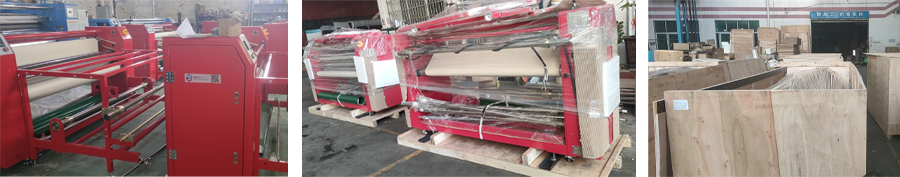

calender machine packing



Send a Message

If you have any problem when using the website or our products, please write down your comments or suggestions, we will answer your questions as soon as possible!Thank you for your attention!
