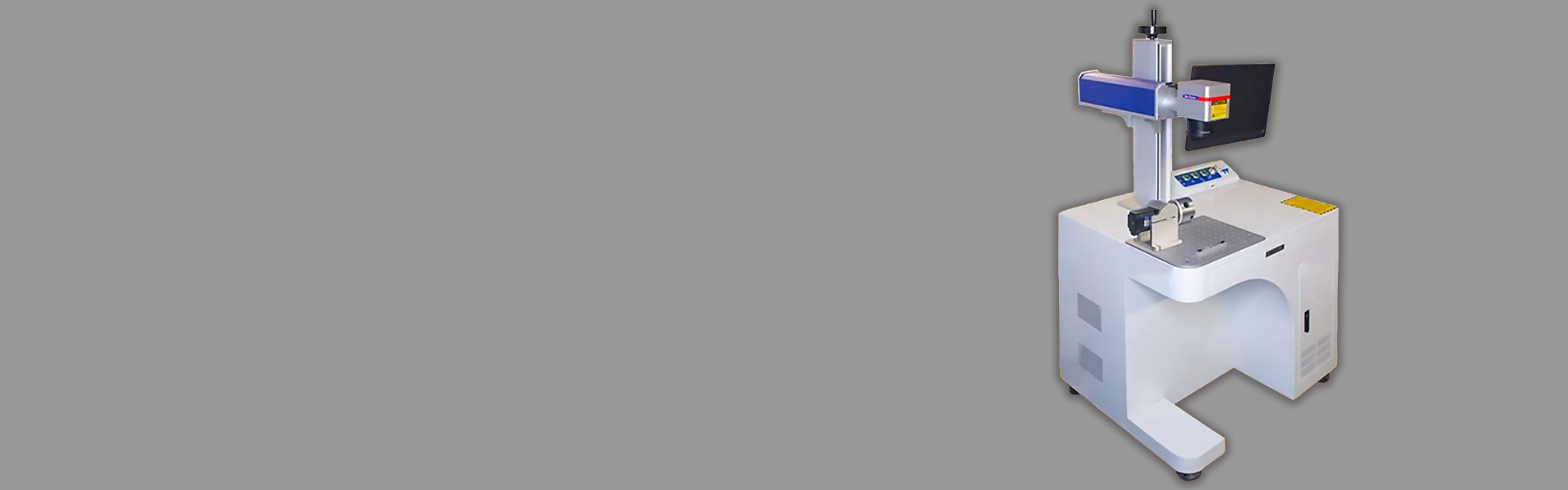

Fiber Mark Machine(Vertical)
30W laser&Genuine board
175MM format
Marking machine rolling
Fiber Mark Machine(Vertical)
30W laser&Genuine board
175MM format
Marking machine rolling
Fiber laser marking machine desktop industrial engraving machine/laser radium engraving machine metal lettering/nameplate/stainless steel utensils/gift customization,etc.
Technical Parameter
Maximum laser power | 20W / 30W / 50W (optional) |
Laser wavelength |
1,060 nm |
Laser brand |
Raycus laser |
Main board brand |
Beijing JCZ |

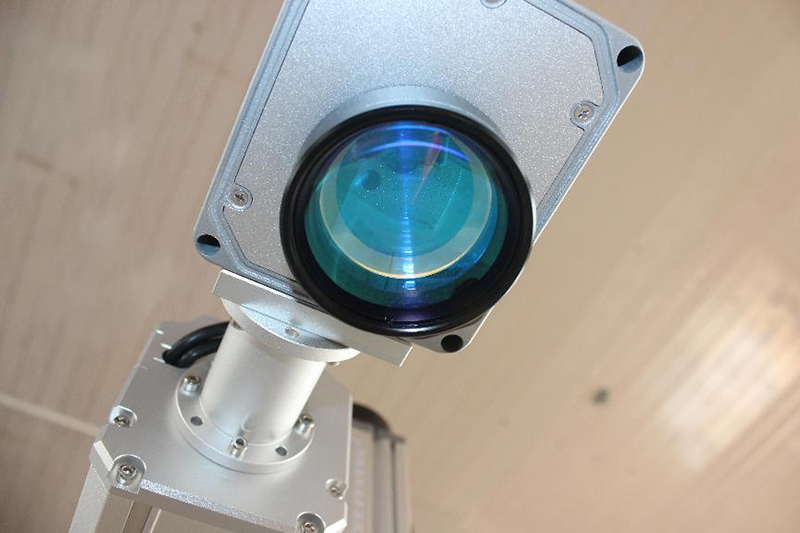

Field mirror brand |
Lattice son |
Mirror brand |
Beijing Jinhaihuang high-speed digital mirror |
Laser repetition frequency |
20 KHz- - -100 KHz |
Bidding range |
150 * 150mm |
Carve line speed |
7000mm / s |
Carving depth |
0.3mm |
Minimum line width |
0.012mm |
Minimum character |
0.15mm |
Replicate accuracy |
± 0.003mm |
Power demand |
220V / single-phase / 50HZ / 4A |
Rated power |
280-300W |
Power suppl |
Single-phase AC 90-260V / 50 HZ-60 HZ |
Complete machine power consumption |
<350W |
Focus point diameter |
<0.01mm |
Marking speed |
> 1000 standard characters / second |
Laser life |
> 100,000 hours |
Computer operating system |
Win XP / Win7 32 bit |
Cooling mode |
Built-in air cooling |
Control interface |
Standard USB |
Standard equipment |
Aviation plug power cord, data cable, Foot switch a pair. |

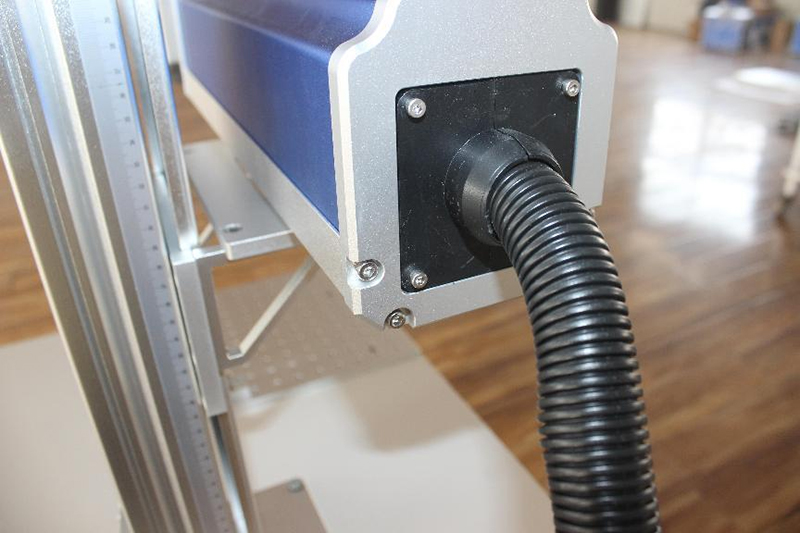

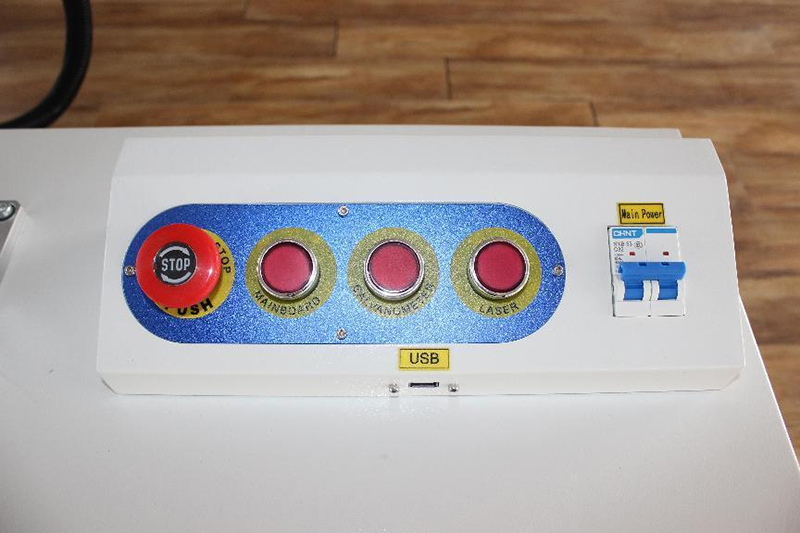

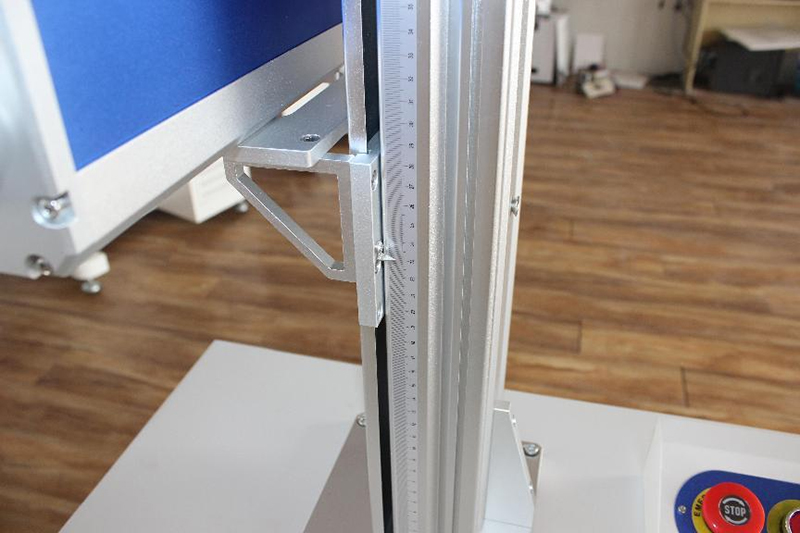

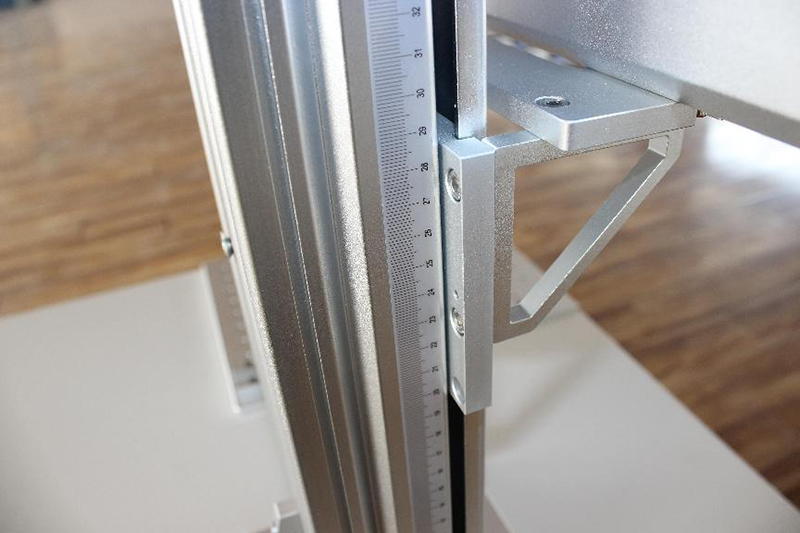

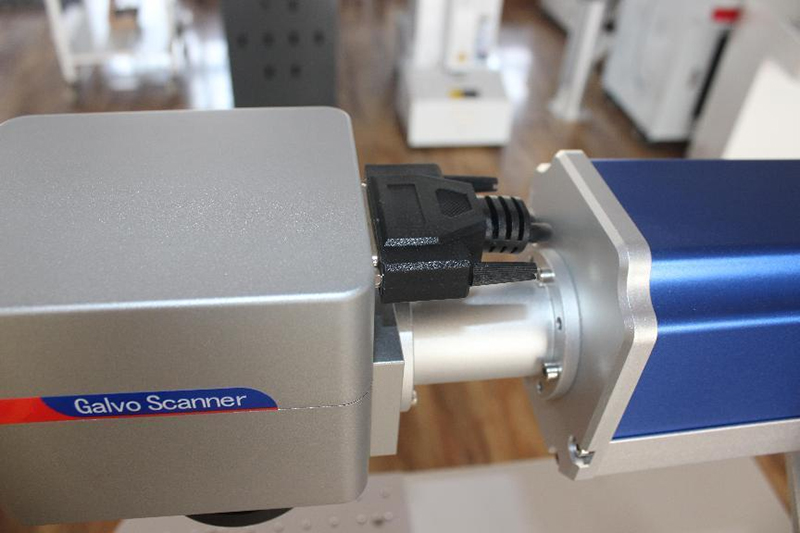

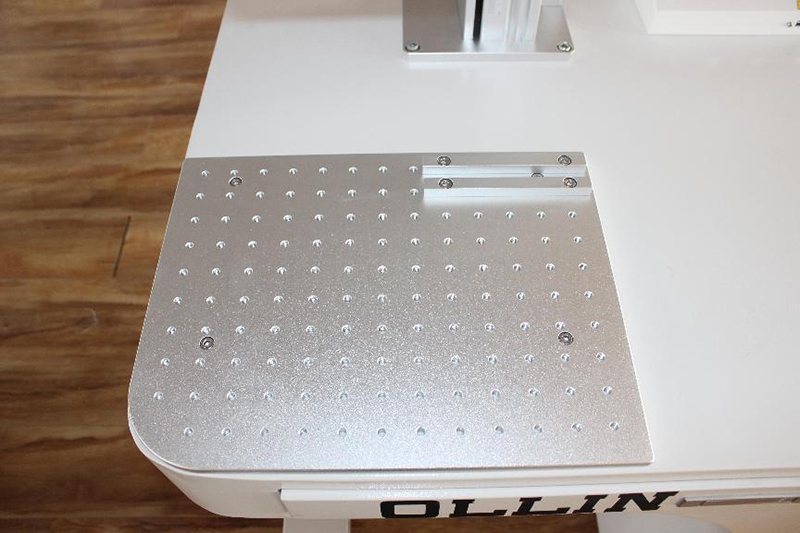

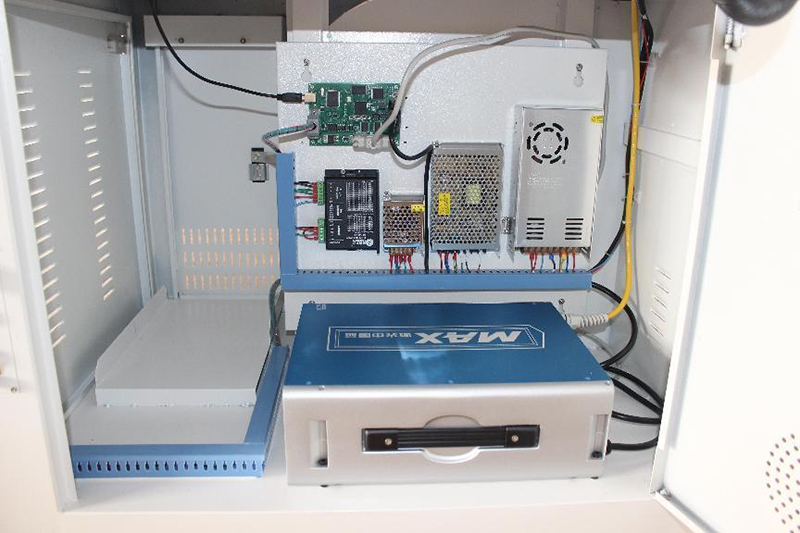

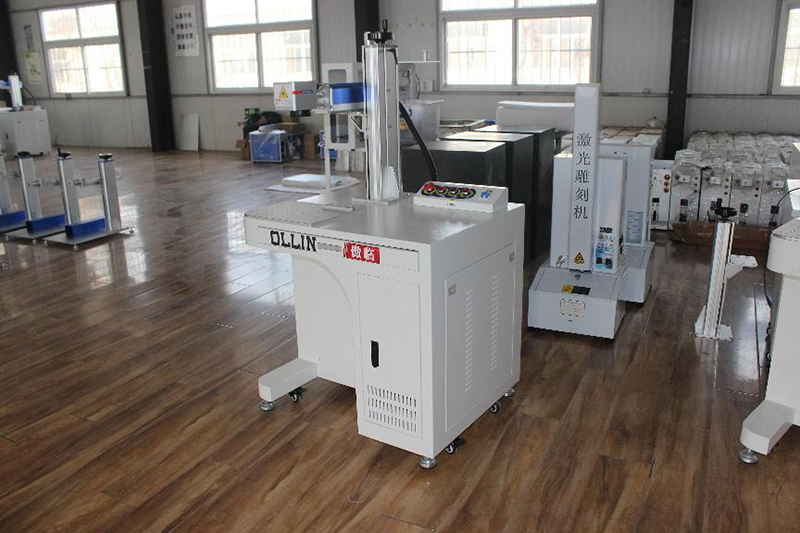

Machine Details |

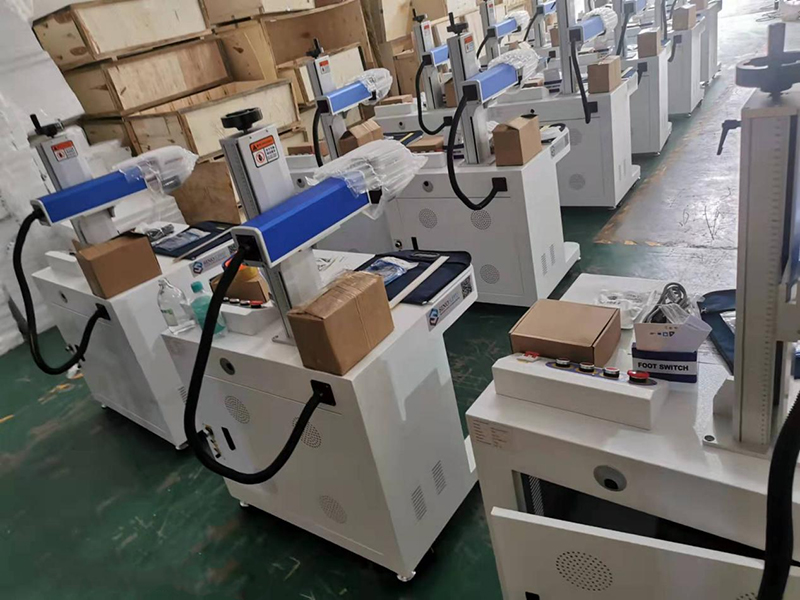

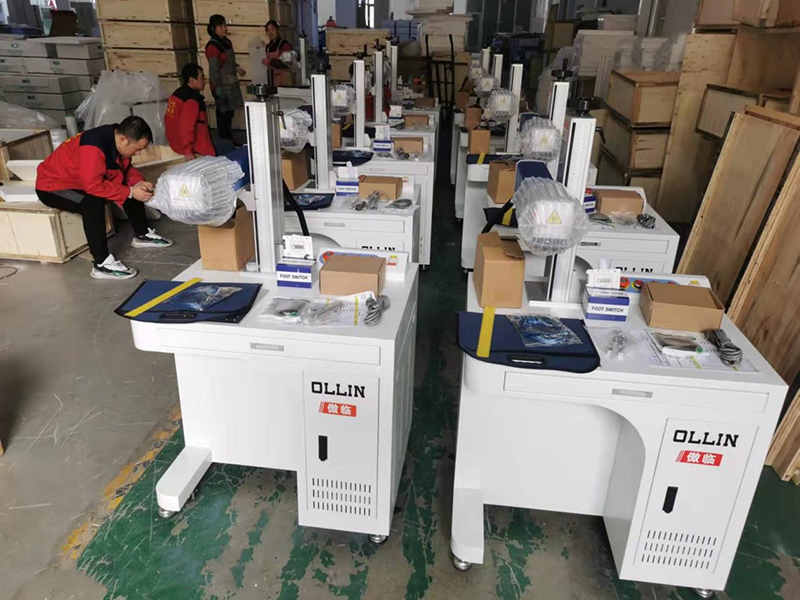

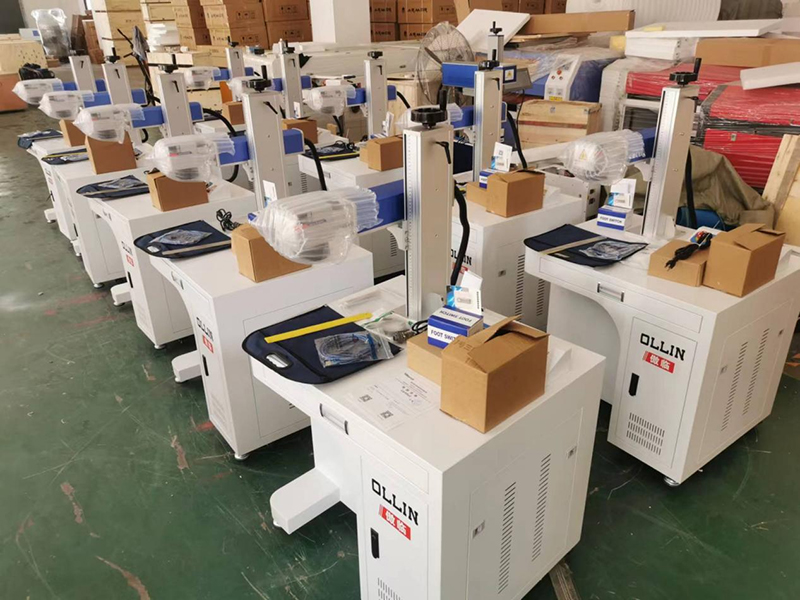

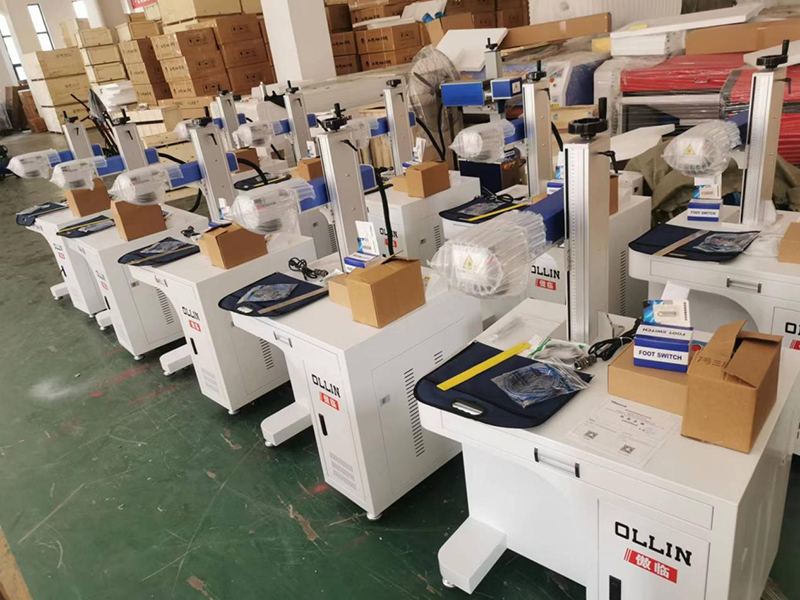

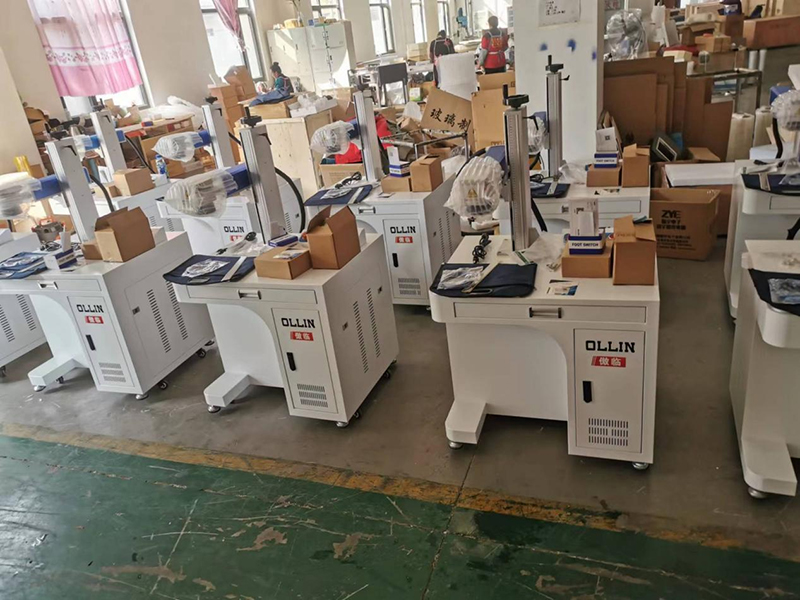

Delivery in Factory |
