Konica 512i print heads
High resolution & high speed
More affordable
|

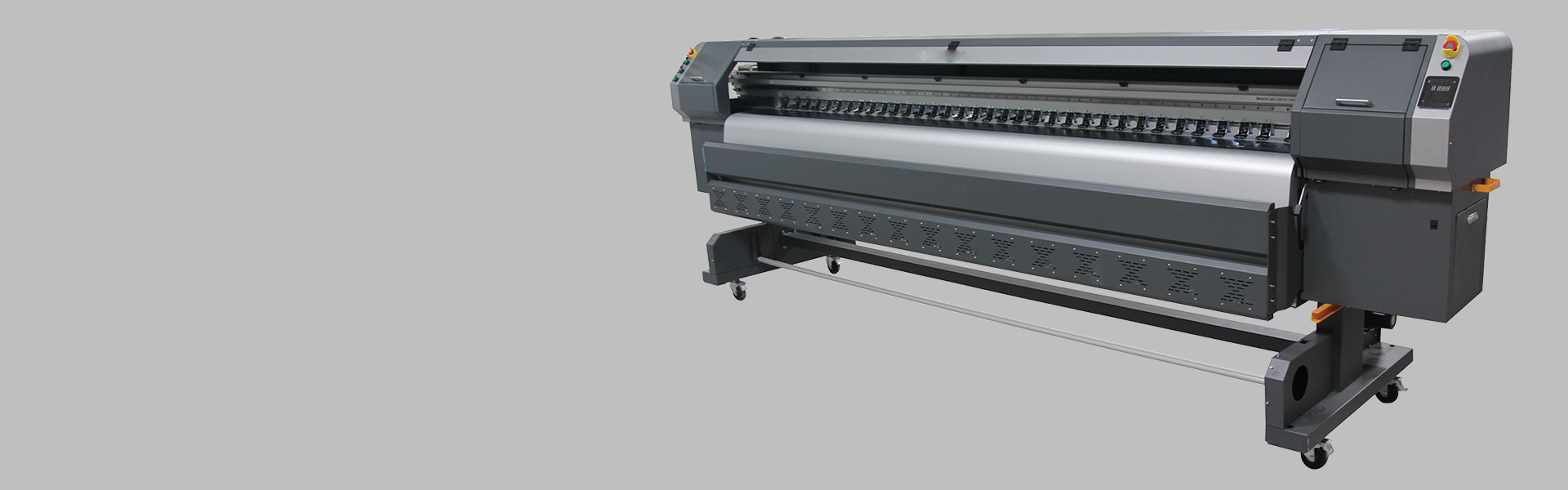

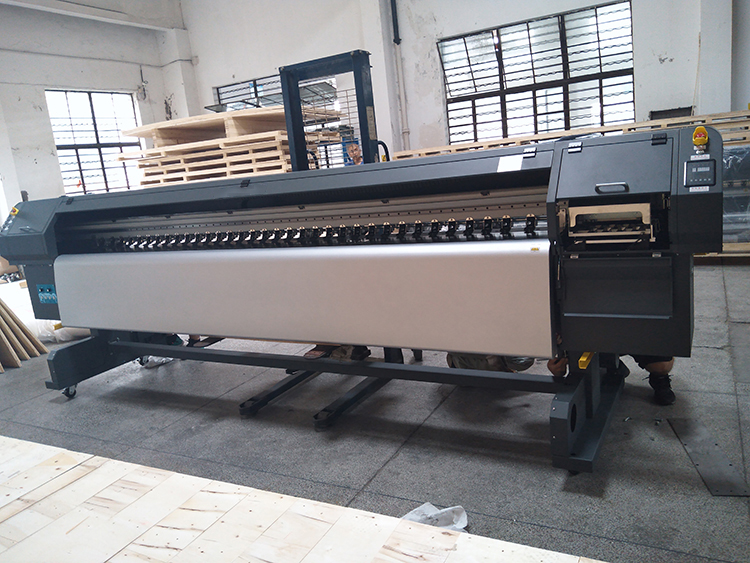

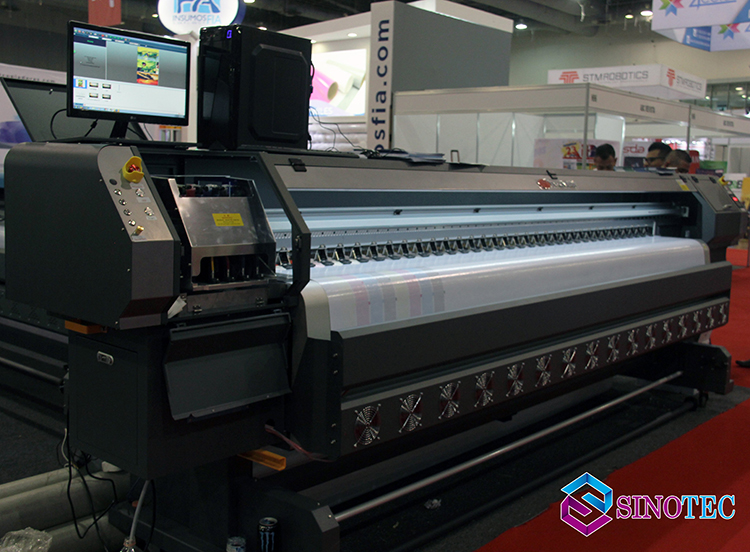

10 ft/3.2m wide large format printer with konica minolta 512i print head Konica print head is one of the most steady one, and also the printing system is satisfied by clients. High speed flex printing machine is not effected by working environment, such as temperature, power supply and humidity.
|
||||
|
Printer parameters |
Konica512i Solvent Printer CK8 | |||
|
Printer head |
KM512i-30pl-4H/8H |
|||
|
Head height |
1-10mm |
|||
|
Printing width |
3200mm |
|||
|
Ink |
solvent ink |
|||
|
Color |
CMYK |
|||
|
Printing material |
type |
height |
automatic feeding |
Drying system |
|
PVC Flex/vinyl |
1-10mm |
yes |
Infrared+fan |
|
|
Ignite Frequency |
20kHz |
|||
|
Print speed 8H |
2pass |
3pass |
6pass |
8pass |
|
260㎡/h |
180㎡/h |
90㎡/h |
70㎡/h |
|
|
Resolution |
480x360dpi |
480x540dpi |
720x1080dpi |
720x1440dpi |
|
File format |
PSD/DWG/HPG/HGL/PS/EPS/JPG/TIF/BMP |
|||
|
RIP Software |
PP/Maintop/Ultrprint |
|||
|
Auto-cleaning |
yes |
|||
|
Operating environment |
temperature：20-27°C humidity：45-75%CH |
|||
|
Power |
AC220/1000W(Print),2000W(Dry) |
|||
|
Operate system |
Windows XP/Win7 |
|||
|
ComputerConfiguration |
Windows XP SP2CPU:Intel quad core i5 memory: KST 4 GBHard disk: WD 500 g hard disk format: NTFS graphics: ATI alone |
|||
|
Packing Size/APP Size |
L/W/H 5000x1200x1700mm |
|||
|
Weight |
950kg |
|||
Applications
Outdoor billboards, flex banner, vinyl, sign display, promotions, etc.
 |
 |
|
