Ricoh G5 print heads
Roll to Roll printing + Flatbed printing
Reasonable design + high performance
Ricoh G5 print heads
Roll to Roll printing + Flatbed printing
Reasonable design + high performance

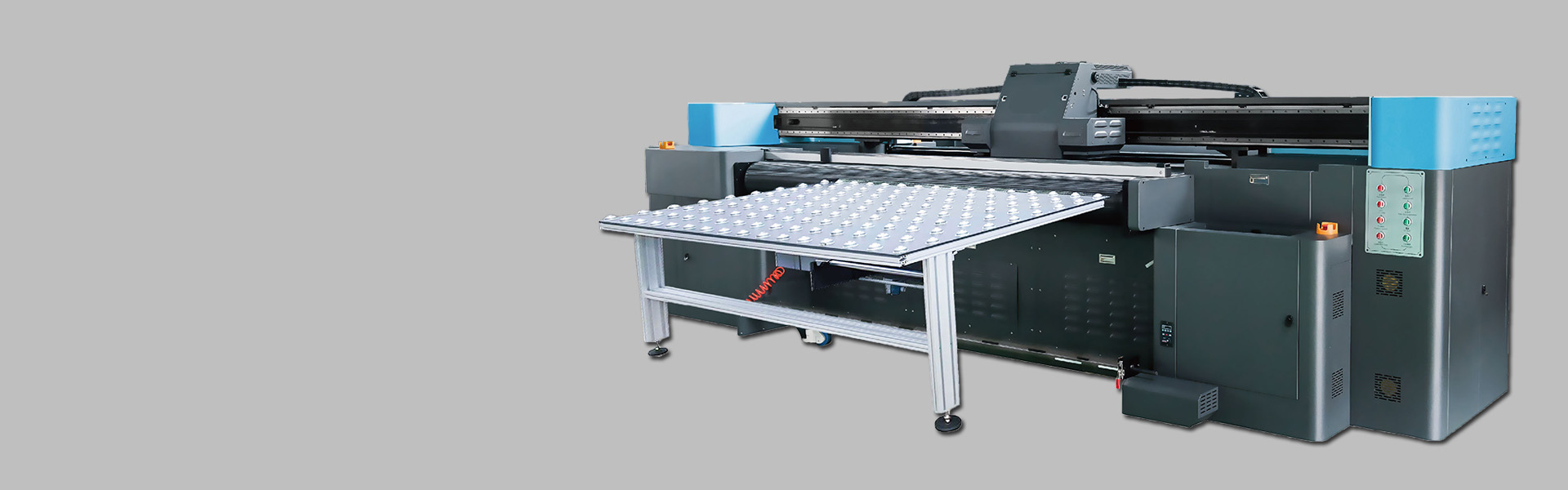

One machine support two type materials printing, roll to roll and sheet flatbed printing
Professional LED UV printing system
Whole casting iron body ensure printing high resolution
|

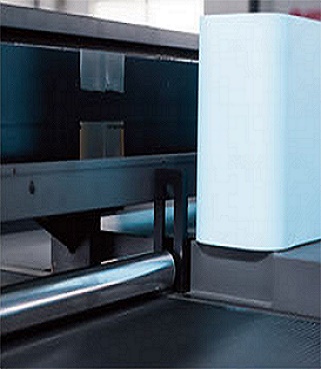

Auto rear pinch |
|
|

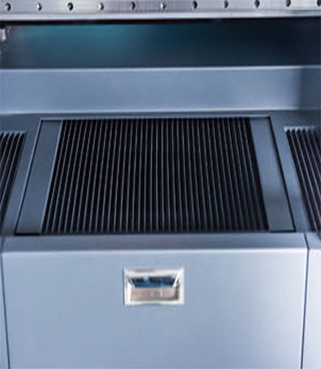

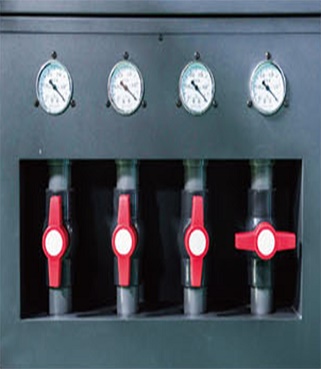

Separate Flatbed sucking |
|
|
|
|

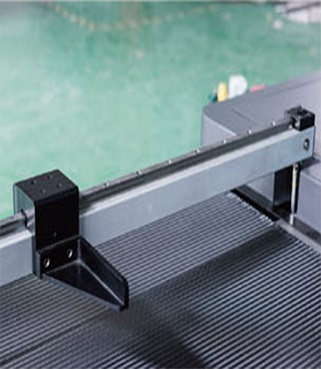

Auto ruler,to correct the position for materia |
|
|
Pre-rule life and down automatically |
|
|
|
|

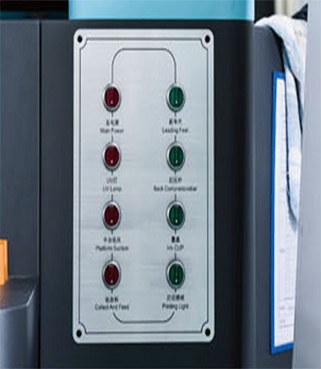

Integrated control button |
|
|

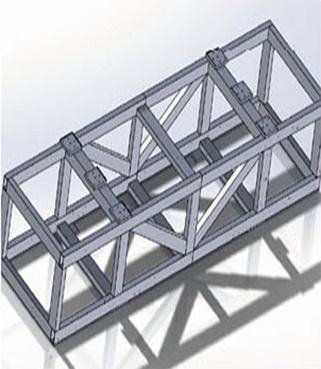

Frame construction |
|
Technical Parameter
Color
Prithead
Ricoh Gen5 Heads
Prine mode and speed
Draft 4pass
40㎡/h 720*600DPl
Standard 6pss
30㎡/h 720*900DPl
High Qualtiy 8pass
20㎡/h 720*1200DPl
Printing Madia
Soft Roll.Hard flatbed
Printing Width
Maxmum 2.5M
Printing Thickness
50MM
Image Data Fromat
TIFF,JPEG,EPS,PDF
Drying system
UV-LED Curing
Ink Type
Environmental Protection UV ink
Ink Volume
2000ML Volume ink,automatic ink detecor and ink supply system
Power Supply
AC 220V
RIP Software
Photoprint Plus Professional/ONYX
Dimension(LXWXH)
4732*1785*1602(MM)
Packing(LXWXH)
4950*2100*1825(MM)
NW&GW
2600KGS&2700KGS
Work Environment
Operating Temperature
15-30℃(59-86°F)
Operating Humidity
40-80% RH
Power
7.5KW
CMYK or CMYK Lc Lm+W+Varnish
Applications
flex banner,film,canvas,soft film, acrylic, aluminous board,corrugated board,glass,tile
|
|
|
|
|
|
