Konica 1024i solvent printer
Our large format printer enables high-speed, large-scale printing with exceptional clarity, flexibility, and professional-grade results for industrial and commercial use.
Print head: KM1024iLNB-30PL-4H/8H
Printing width: 3200mm
Print speed: 580sqm/h
Board set: BYHX board
Software:Maintop/Photo print/RIIN
Printer Features

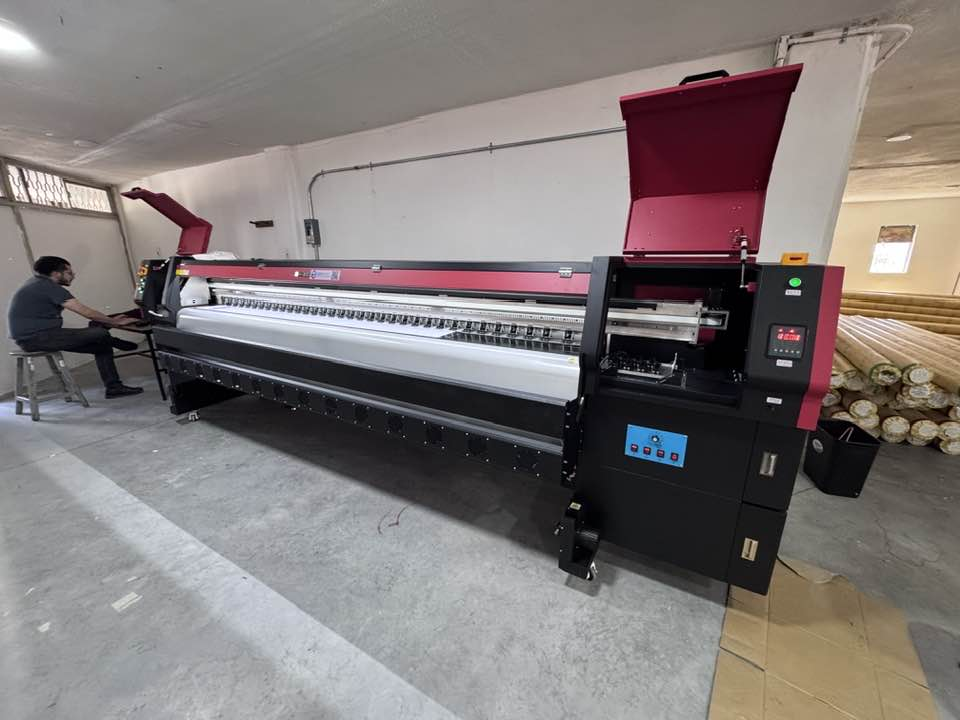

Full view of a large industrial printer
Full view of a large industrial printer in red and black, showing the printing platform and drying light strip.

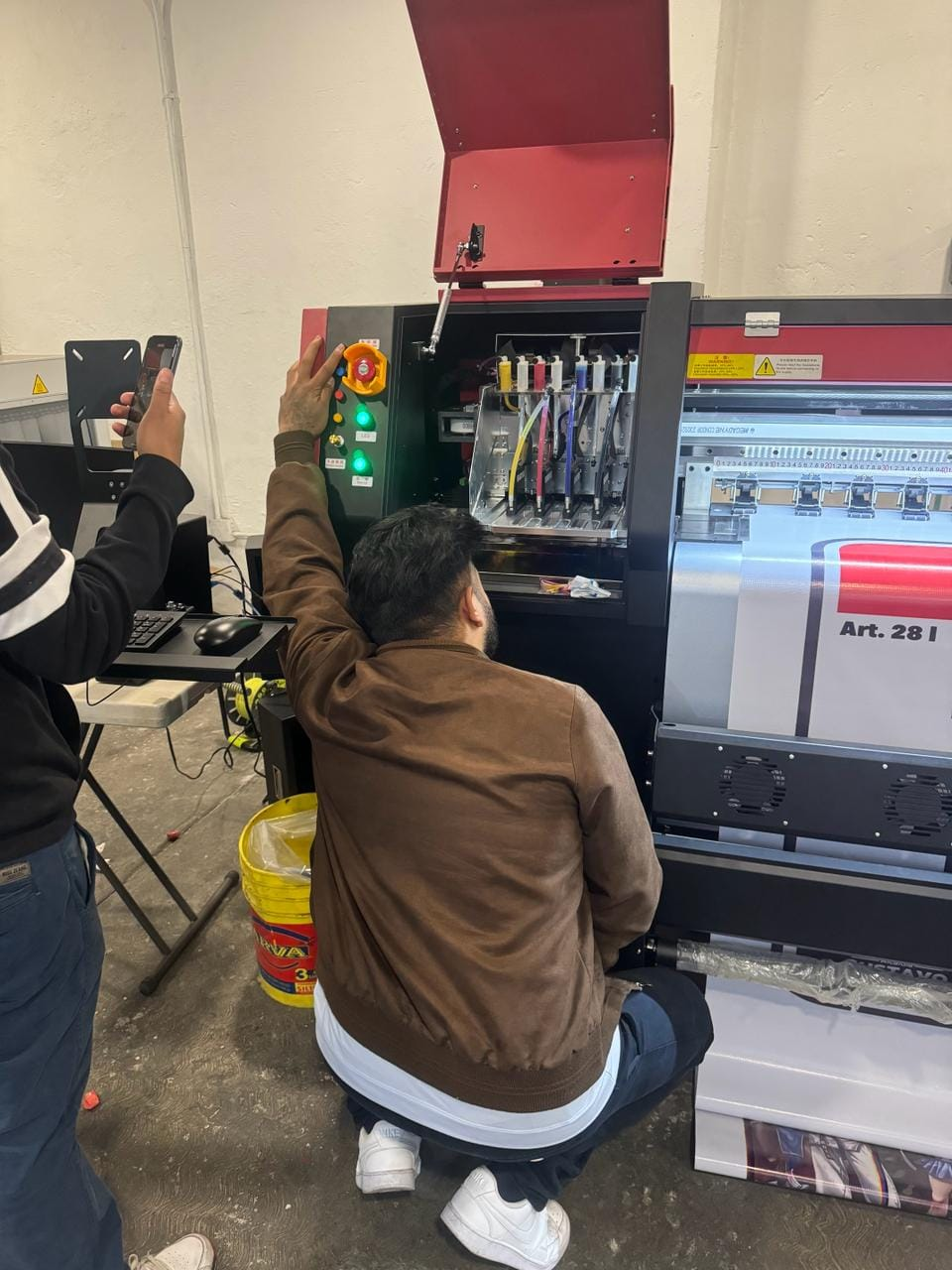

Multi-color ink supply system
Close-up of the printer’s internal multi-color ink supply system, with clearly corresponding ink tubes and bottles.
Roll installation and power supply equipment
The rear of the printer with the material roll installation and power supply equipment, demonstrating complete industrial supporting configuration.

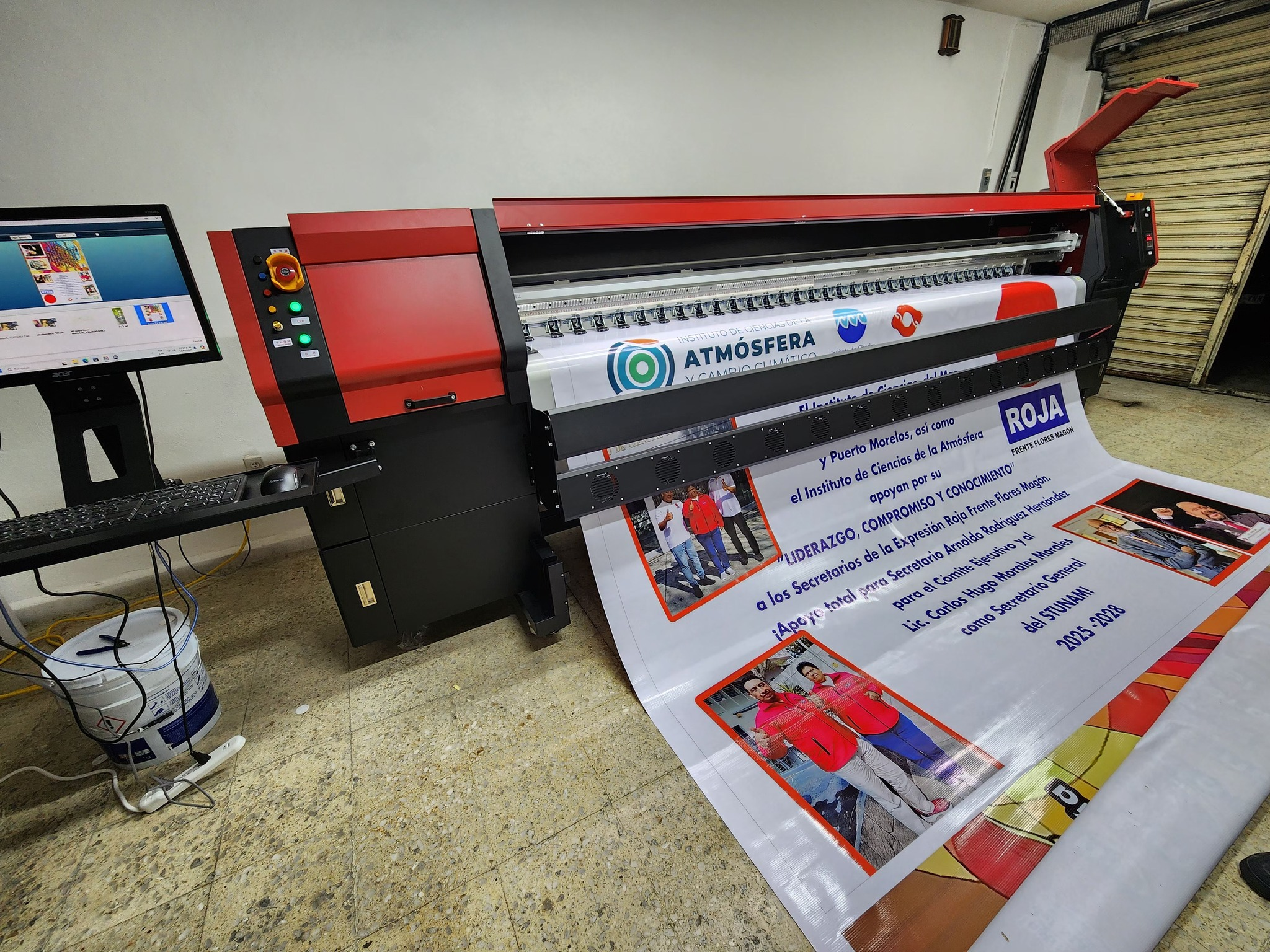

The operator controls the equipment
An operator controlling the device via a computer, printing a large-format pattern with rich colors.
Specification
| Model | Konica 1024i solvent printer S9 |
| Print head | KM1024iLNB-30PL-4H/8H |
| Number of printhead (PC) | 8 |
| Printing width | 3200mm |
| Printing speed | 1pass: 580㎡/h
2pass: 280㎡/h |
| Compatible ink | Solvent ink |
| Cleaning of printhead | Automatic |
| Printing media | PVC flex banner/ Coiled material/ Light box cloth/ PP/ Roll material |
| Drying system | Intelligent infrared heating & air drying system |
| Software | Maintop/ Photo print/ RIIN |
| Working environment | 18-30℃ Humidity 40-60% |
| Voltage | AC220V 50-60HZ |
| Operating System | Window XP/ Window 7 |
| Packing size | 5000*1070*1605mm, 1100KG |
