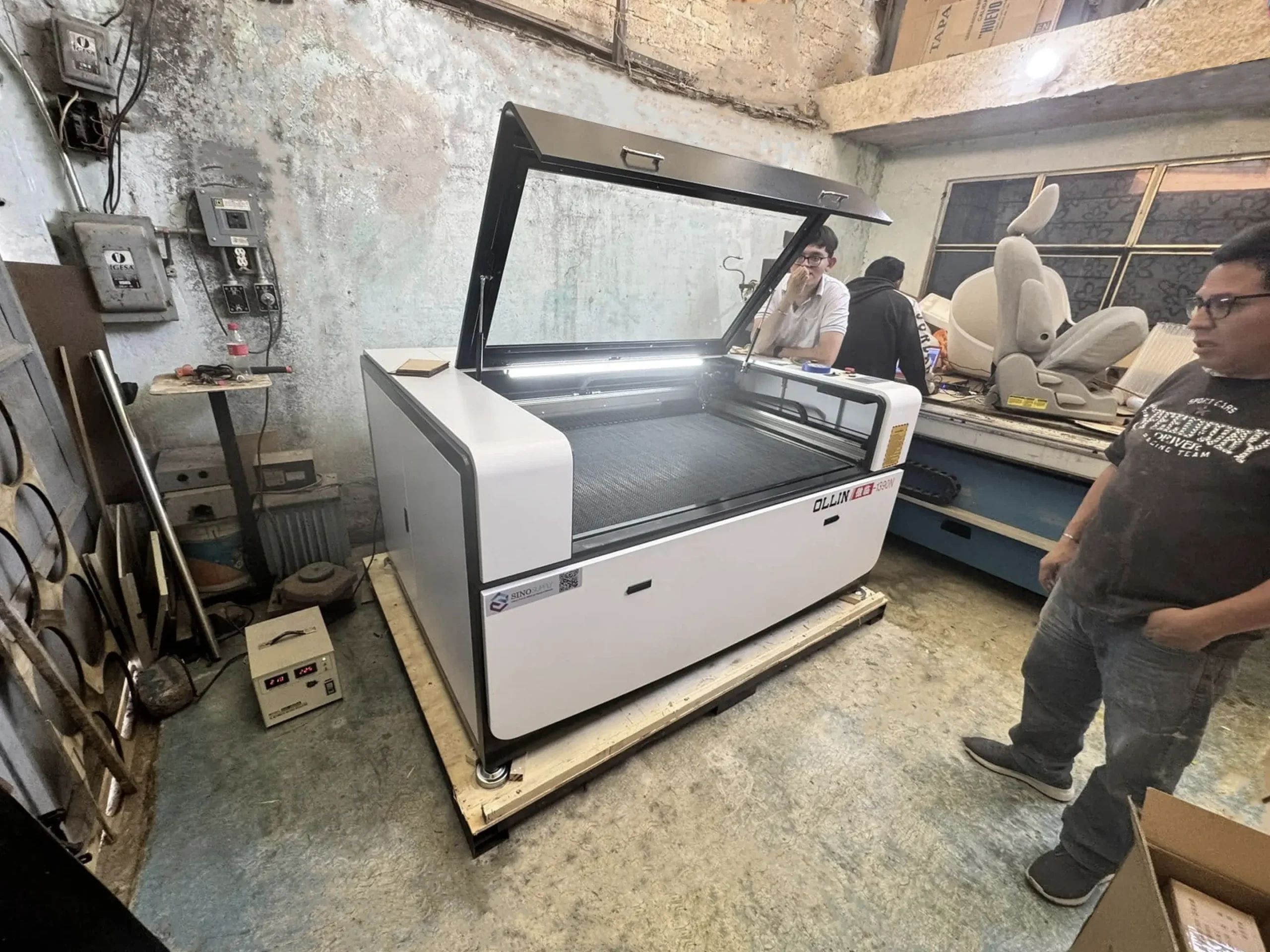

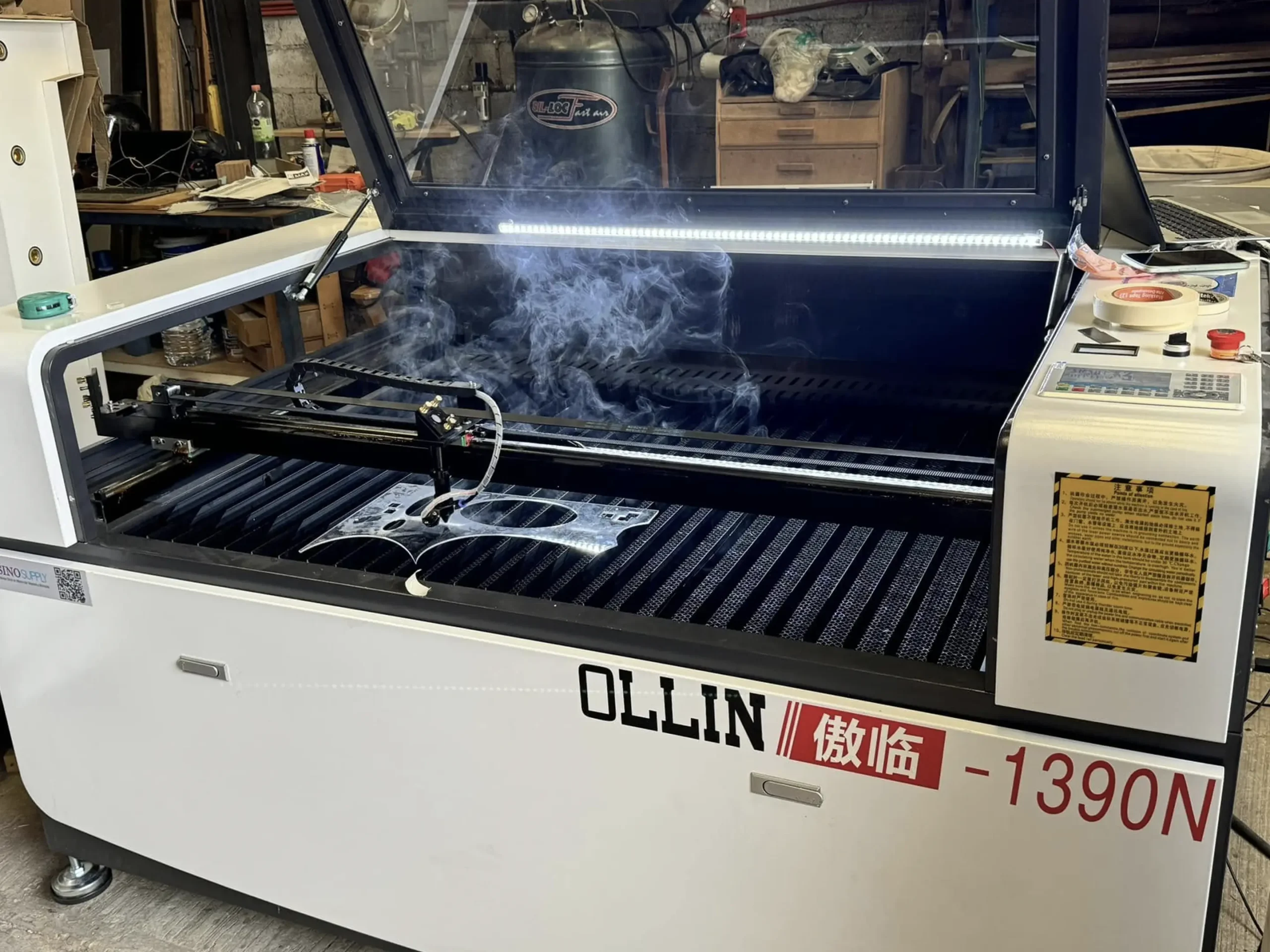

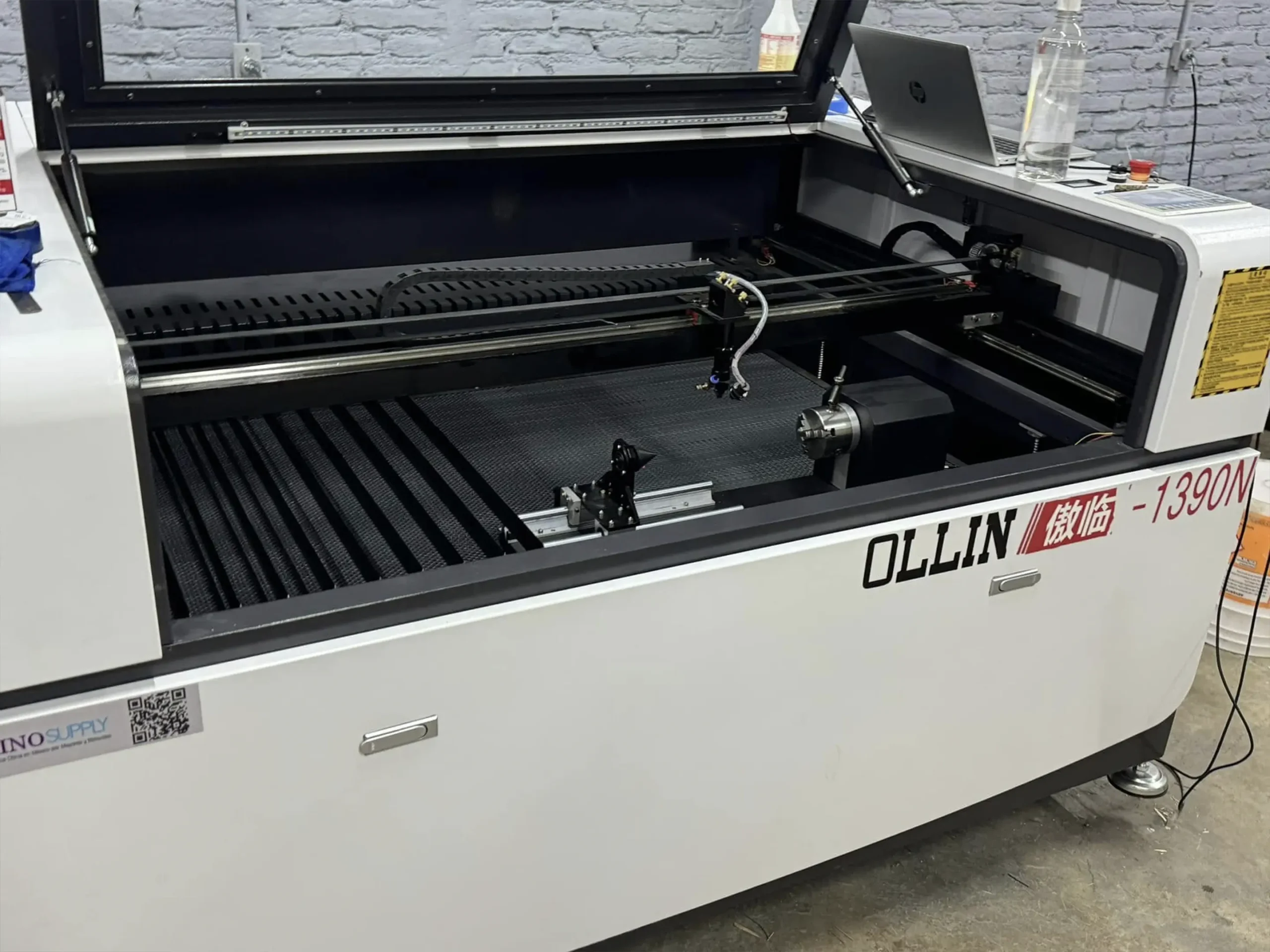

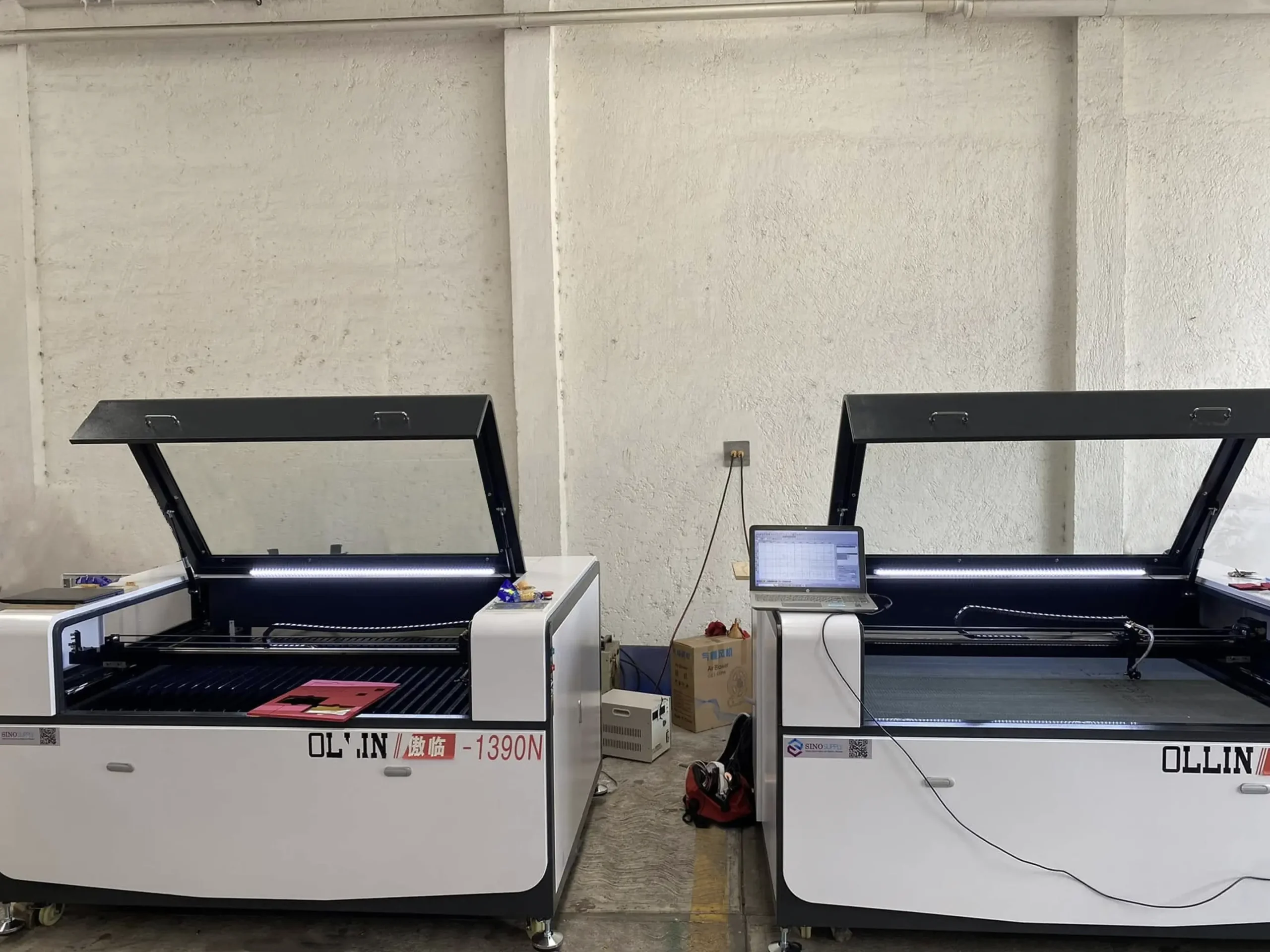

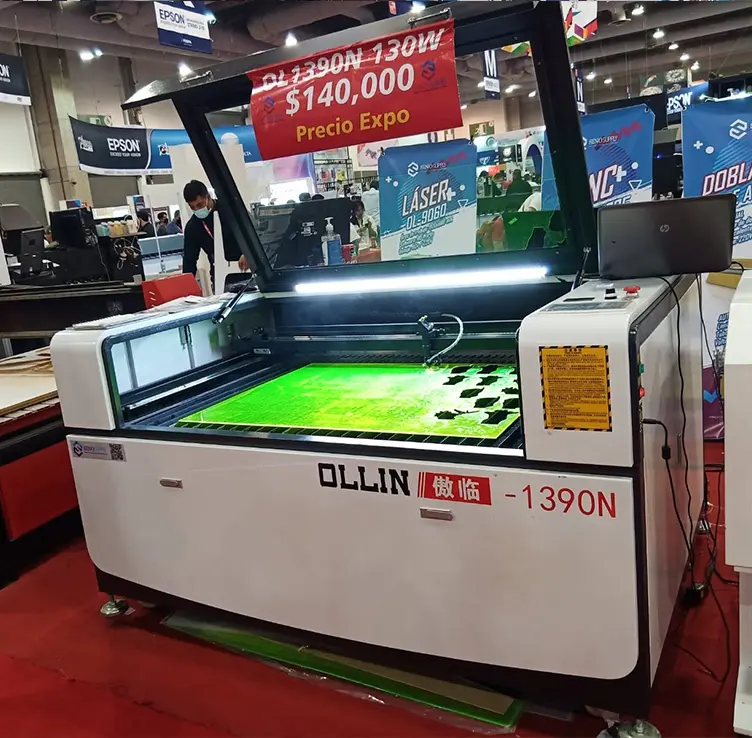

1390N Laser engraving machine
This laser engraving machine adopts a thick welded rigid frame, delivering stable high-precision cutting and engraving on acrylic, wood, leather and various nonmetals. It comes with a safe flip protective cover, efficient transmission system, simple operation and outstanding durability, ideal for small workshops and customized craft mass production.
Model: OLLIN-1390N
Working area: 1300*900mm
Laser power: 130W
Laser tube: CDWG S7/YongLi H6
Printer Features
The laser head
The laser head features a precisely adjustable focusing structure with fast response. With reliable heat dissipation and protective design, it supports processing of a wide range of materials, achieving delicate layered engraving and clean, burr-free cutting effects.
The laser tube
The laser tube boasts high photoelectric conversion efficiency and stable power output. Featuring long service life and low energy consumption, it supports long-hour continuous operation, delivering great cost performance with easy maintenance.
The machine cabinet
The machine cabinet adopts thickened steel structure, which is sturdy and deformation-resistant. Featuring an enclosed dust-proof and dirt-proof design with excellent heat dissipation, it maintains a low failure rate and delivers great durability during long-term continuous operation.
This control panel
This control panel comes with reasonably arranged buttons for effortless operation even for new users. It is fully functional with adjustable parameters, executes commands without delay and features strong anti-interference capacity, keeping stable performance and avoiding malfunction during long-hour operation.
Specification
| Model | OLLIN-1390N laser engraving machine |
| Working area (mm) | 1300*900 |
| Dimension | 1900*1100*1380mm |
| Table structure | Reinforced steel structure body |
| Laser tube | CDWG S7/YongLi H6 |
| Laser power | CDWG 130W |
| Laser model | CO2-sealed glass tube laser, water-cooled, 10.6UM |
| Laser power control | 1-100% software setting |
| Drive system | Stepper |
| Control system | Ruida |
| Power supply | 220V±10%, 50HZ-60HZ |
| Cooling way | Water cooling |
| Carving speed | 300mm/s |
| Cutting speed | 100mm/s |
| Maximum scanning accuracy | 2500DPL |
| Positioning accuracy | ≤±0.01mm |
| Color separation cutting | Equipped |
| Weight | 350KG |
| Gross weight | 475KG |
| Packing size | 2000*1550*1230mm |
